RU-IR SERIES
Ru-Ir Titanium Mesh Anode
Ruthenium-iridium coated expanded mesh — the standard DSA anode for chlorine evolution duty.
Ru Series < 3000 A/m²Ir Series < 10000 A/m²Loading 8–45 g/m²Recoating Available
01 / Key Features
Why This Anode
- High corrosion resistance in harsh electrolytes
- High current efficiency
- Long service life — substrate reusable after recoating
- High current density for higher productivity
- Lightweight electrode structure
02 / Specifications
Technical Data
| Parameter | Specification |
|---|---|
| Base metal | Ti Gr1/Gr2 (TA1/TA2); Ta, Nb optional |
| Ru series coating | RuO₂ + X — HCl < 20%, < 3000 A/m², 8–25 g/m² |
| Ir series coating | IrO₂ + Ta₂O₅ + X — H₂SO₄ < 60%, < 10000 A/m², 15–45 g/m² |
| Temperature | < 60 °C |
| Fluoride | < 50 mg/L |
| pH | 1–12 |
| Suitable media | Saturated NaCl brine; HCl + toluene; HCl + cobalt oxide; seawater |
03 / Applications
Where It Works
- Caustic soda production
- Diaphragm chlor-alkali cells
- Chlorate industry
- Organic synthesis
- Sodium hypochlorite generation
- Seawater electrolysis
- Non-ferrous metal electrowinning

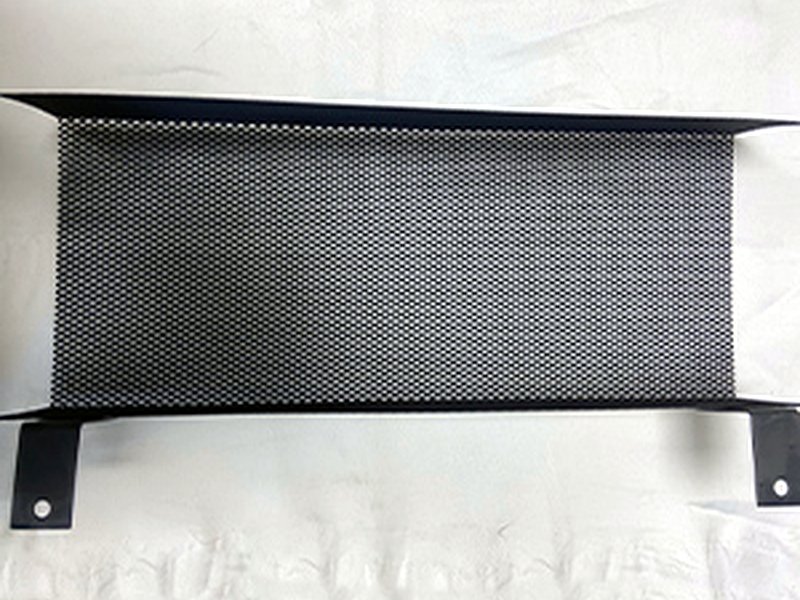

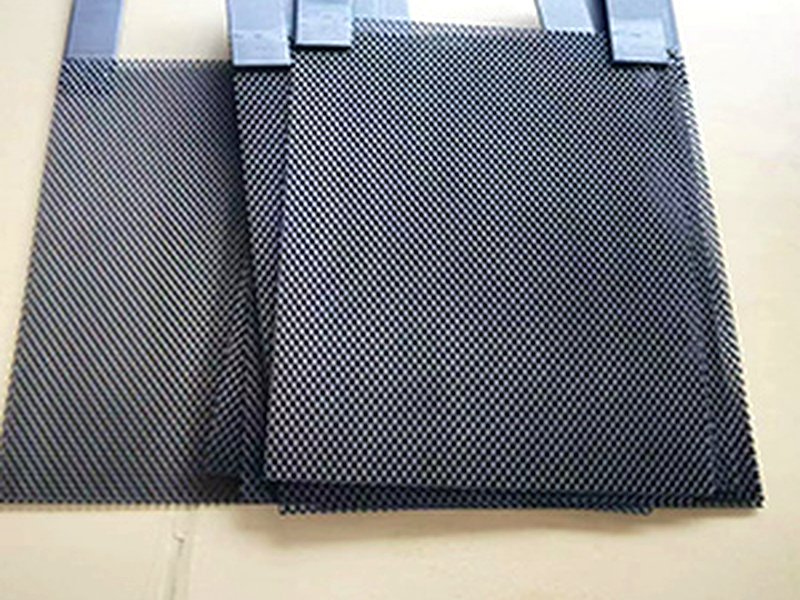

04 / Gallery
Product Photos
← Back to Ru-Ir & Ir-Ta Coated Anodes
Need This Anode in Your Dimensions?
Custom shapes and coating loads available — quotation within 24 hours.
